Smart Solutions for Seamless Pipe Rehab
Designed for precision and performance, the Rausch Rehab UV Curing Systems deliver fast, efficient trenchless pipe rehabilitation with minimal disruption. Whether you're working on sewer laterals, mains, or connection repairs, Rausch Rehab offers reliable solutions backed by German engineering and proven in the field.
Engineered for Success
The Rausch Rehab UV curing range is engineered to deliver consistent results across diverse pipe environments. From the compact versatility of the RRcure 100 SE to the high-powered performance of the RRcure 1500 Compact, these systems are built to streamline the curing process, minimise downtime, and ensure precise, dependable results—whether working in tight access conditions or rehabilitating large-diameter pipelines.

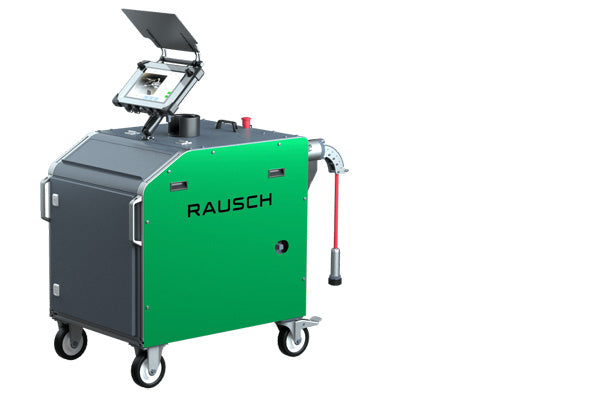

RRcure 100 SE
The Rausch Rehab UV curing system RRcure 100 SE is designed for the rehabilitation of horizontal sewage and pressure pipes with a nominal width of DN100 to DN600.
The RRcure 100 SE also provides an additional solution when combined with the RRLQ Hybrid MH light source to cure vertical shafts and maintenance holes from approx. DN800 to DN1200.
Dimensions:
- Width: 686mm
- Height: 1,004mm
- Depth: 1,200mm
- Weight: approx. 160kg
- Connection: CEE 16 / 10 KW

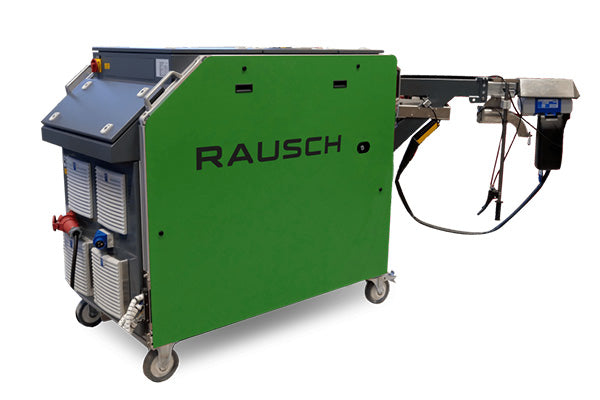

RRcure 1500 Compact
The Rausch Rehab UV curing system RRcure 1500 Compact is engineered for the rehabilitation of large-diameter horizontal sewage and pressure pipes, supporting nominal widths from DN150 to DN1800. Its high-powered performance makes it ideal for extensive relining projects requiring precision, reliability, and efficiency in demanding conditions.
When paired with the RRLQ Hybrid MH light source, the RRcure 1500 Compact can also be used to cure vertical shafts and maintenance holes with diameters up to DN1800, providing a flexible solution across both mainline and access structure rehabilitation.
Dimensions:
- Width: 850mm
- Height: 1,370mm
- Depth: 1,600mm
- Weight: approx. 450kg
- Connection: CEE 32 / 22 KW
Need help choosing the right product?
Our team is here to guide you through the Rausch Rehab product range to find the best solution for your next job.
