Picote Flexi-Sliplining™

Trusted System Proven Worldwide

Installed in over 16 countries since 2016
DIBt certified Flexi-Pipe* which has 3 layers for flexibility.

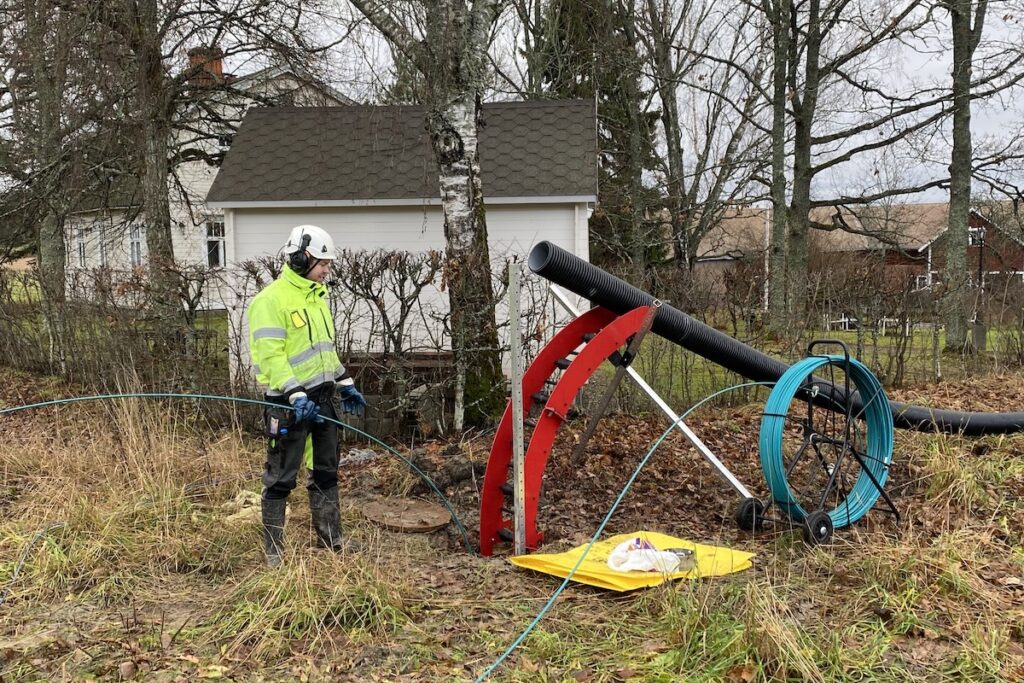

Manhole to manhole installation without need for bypass pumping.

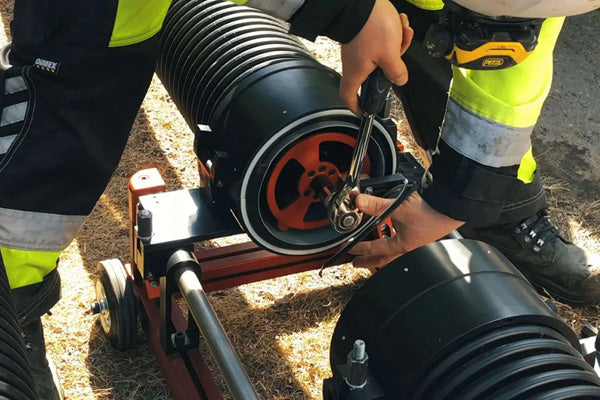

Picote designed welding & installation equipment

As with all sliplining systems there is a slight loss of inner diameter once the installation is completed, which does not affect flow. Also suitable for house connections.

*Tested under the name Flexirohr

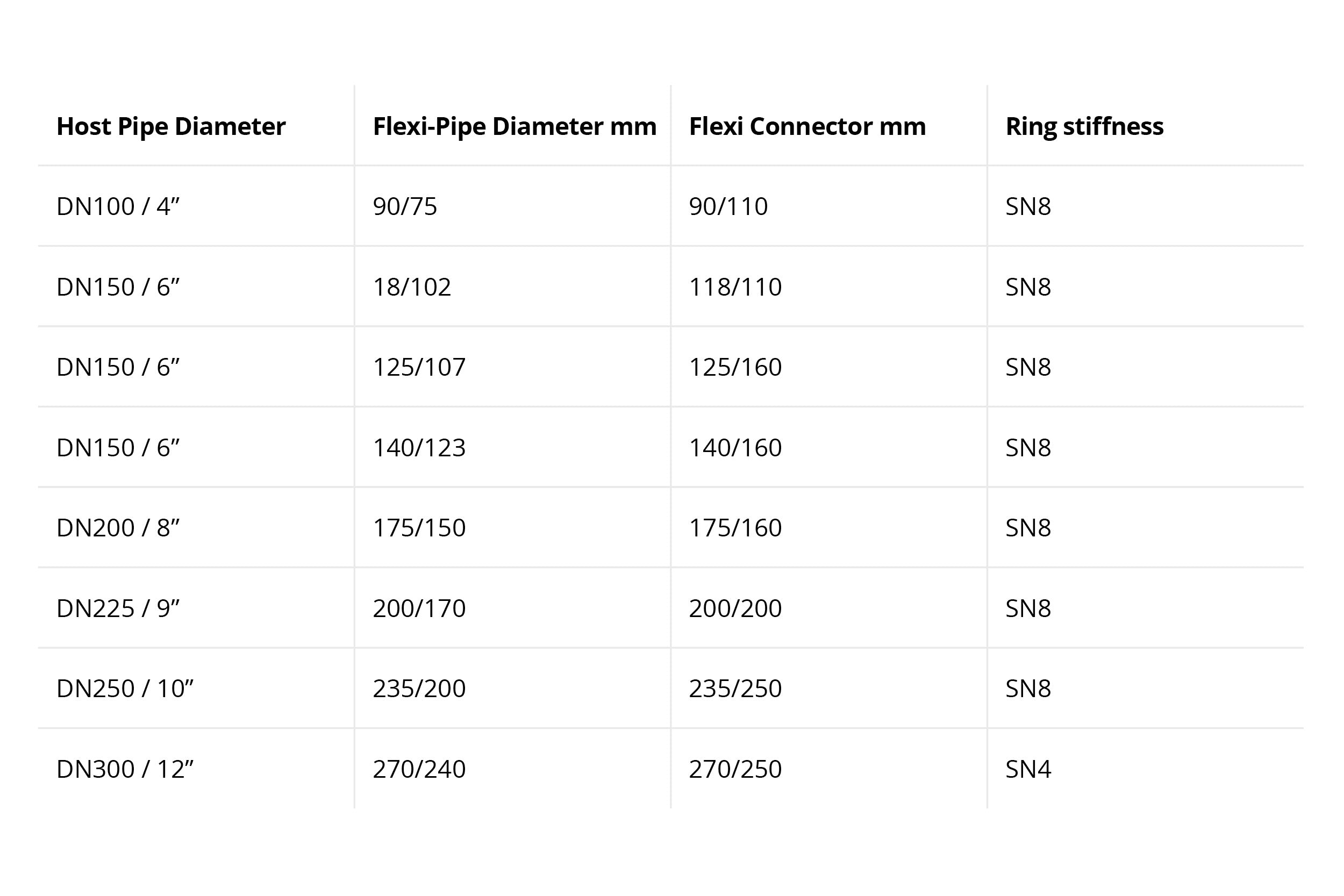

A low-emission option to rehabilitate DN100-300 (4-12") non-pressure pipes

DIBt CERTIFIED

Flexible 3-layered pipe with better flow properties than cast iron, concrete or clay.

EASY

Minimal training and as little as two-man crew required. Fully welded system with no bypass pumping required. Can be manhole to manhole for simple no-dig solution. Pull-resistant couplings available.

FAST

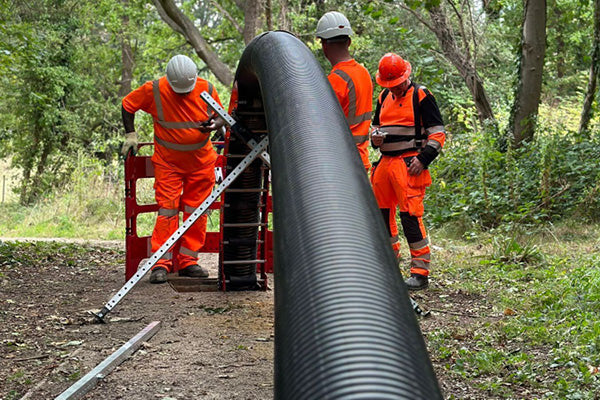

Pulling speed of 8m per minute! No curing required as factory produced pipe. Welding takes approx. 10 minutes per section.

EFFICIENT

Minimal equipment required. Low installation risk. Can navigate bends. It is a new pipe which means that installation is successful regardless of condition of host pipe.

ENVIRONMENTALLY FRIENDLY

With no toxic waste. No hazardous chemicals means that it is safe for operators. No emissions during or after installation. Low raw material usage (minimal oil used in pipe) means that there are lower CO2 emissions.

SOLUTION FOR INFILTRATION/EXFILTRATION ISSUES

Where there is water in the pipe, this system can be pulled in place without draining or bypass pumping. Recent UK tidal and under-river case studies.
