Description
Description
Access for CCTV and Drain Clearance. A secure point of entry into DN70, DN100 and DN150 plastic, ductile and cast iron pipes.
Designed for entry into drainage systems where no man hole exists or there is no other means of access.
Installation takes less than a minute, although this may increase when cutting into very old cast iron pipe.

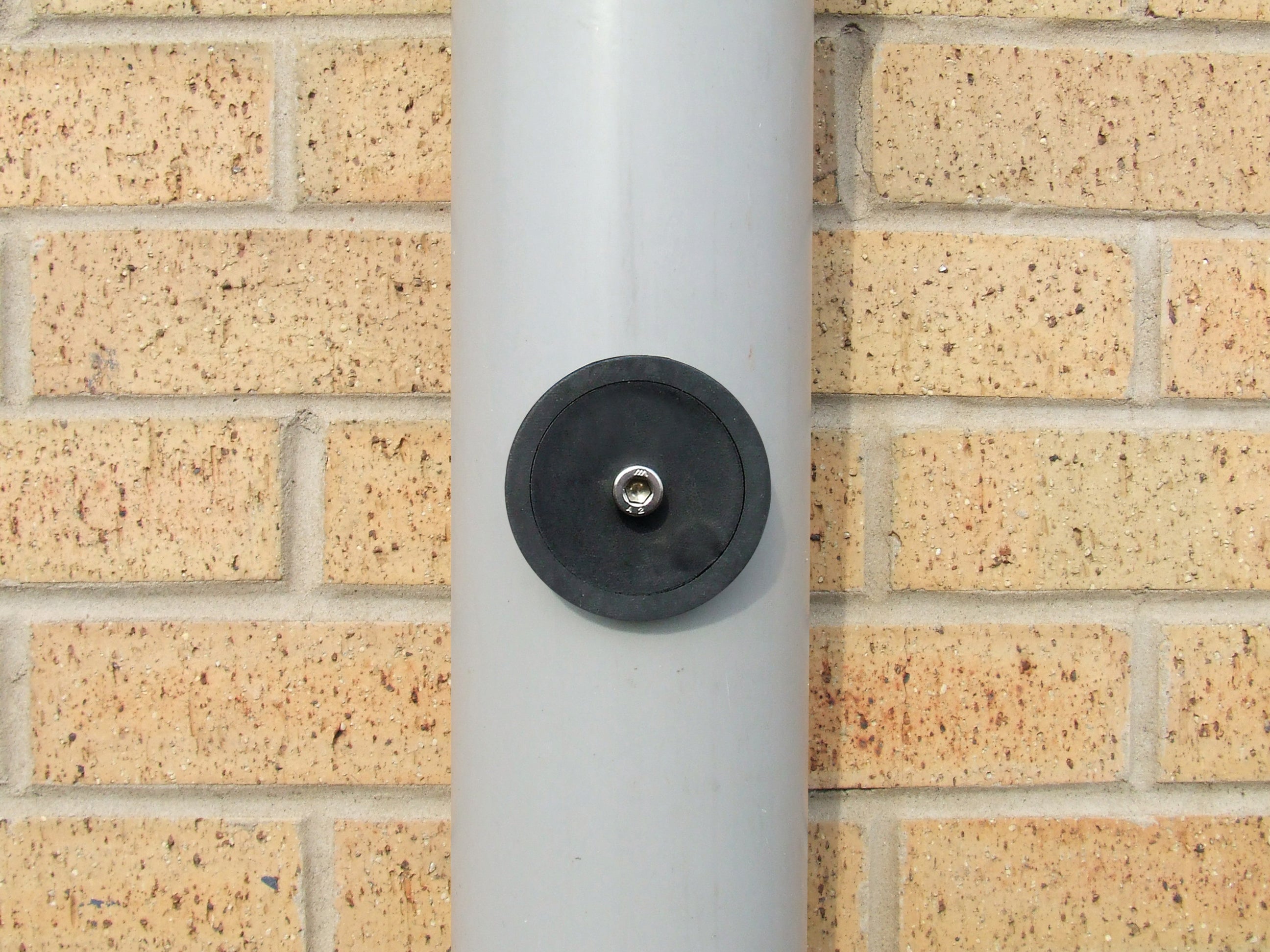

Creates a professional and tidy access point, ready for use at any time.
Benefits:
- Quick and easy installation.
- Can be removed and refitted.
- Withstands up to 1 bar pressure.
- Creates a professional and tidy finish.
- Pre-assembled for direct insertion into the host pipe.
WATCH HOW IT WORKS

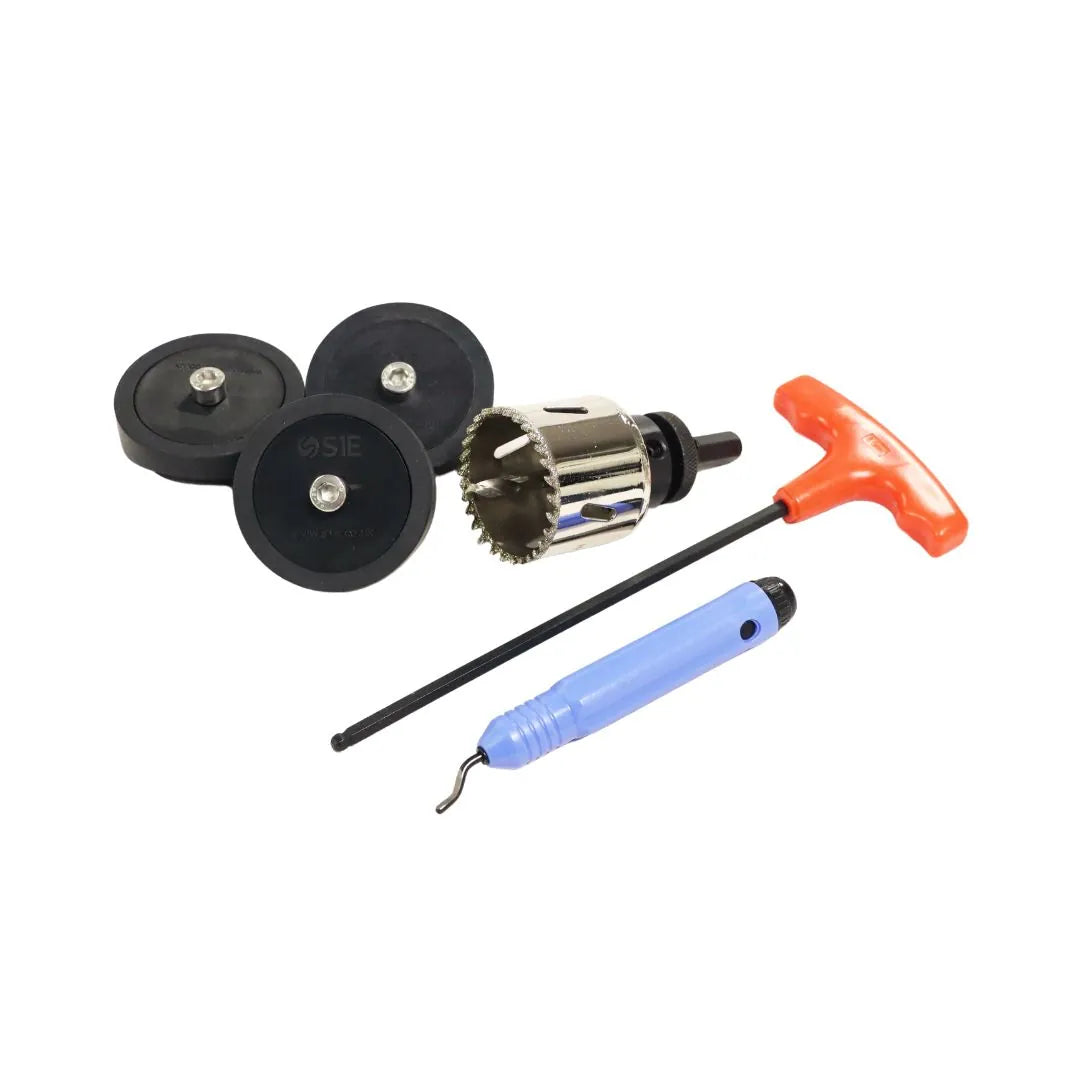

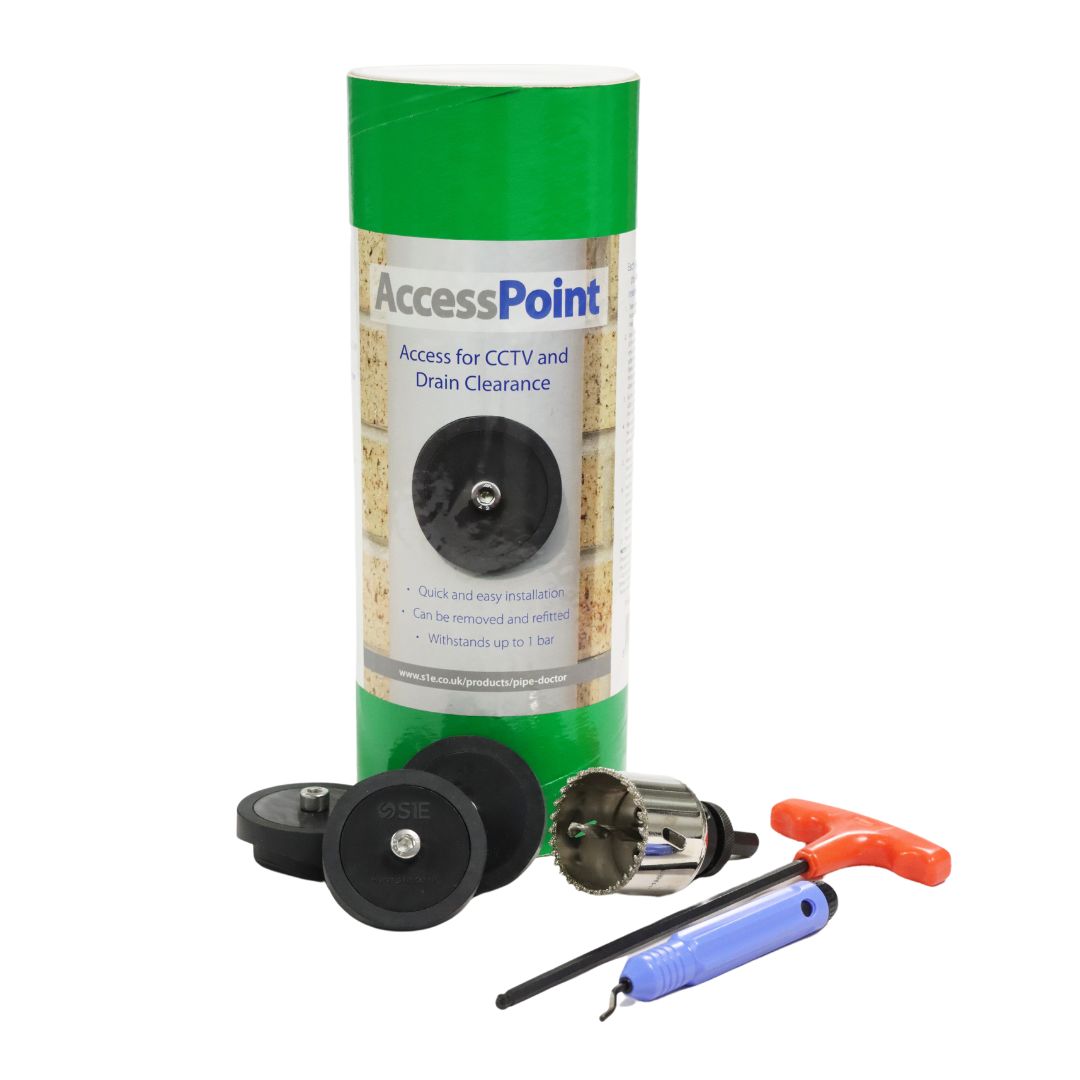

The Contractor Pack contains:
- 10 Access Points
- 54mm diamond core drill for cutting the hole to the exact required size
- De-burring tool for smoothing off the hole
- Allen key to tighten the Access Point once it's in place
Available in stock
Whether you're a contractor, builder, or DIY enthusiast, the Access Point is a neat, tidy and professional solution for entry into drainage systems. With clear entry, inspections and maintenance are quicker and easier, reducing risks and improving productivity.
-
Product FlyerProduct FlyerPDF
-
Size RangeDN70 - DN150
-
Pressure Rating1 bar, 14.5psi
-
Jetting Resistance180 bar
-
MaterialEPDM, GF Nylon, 1.4301 (304) Stainless Steel
-
Temperature Range-50°C to 80°C constant, 100°C intermittent
-
Tightening Torque6Nm
-
StandardsBS EN 681-1:1996
