Pipe Core Fibreflex Liner
Pipe Core Fibreflex Liner
Description
Description

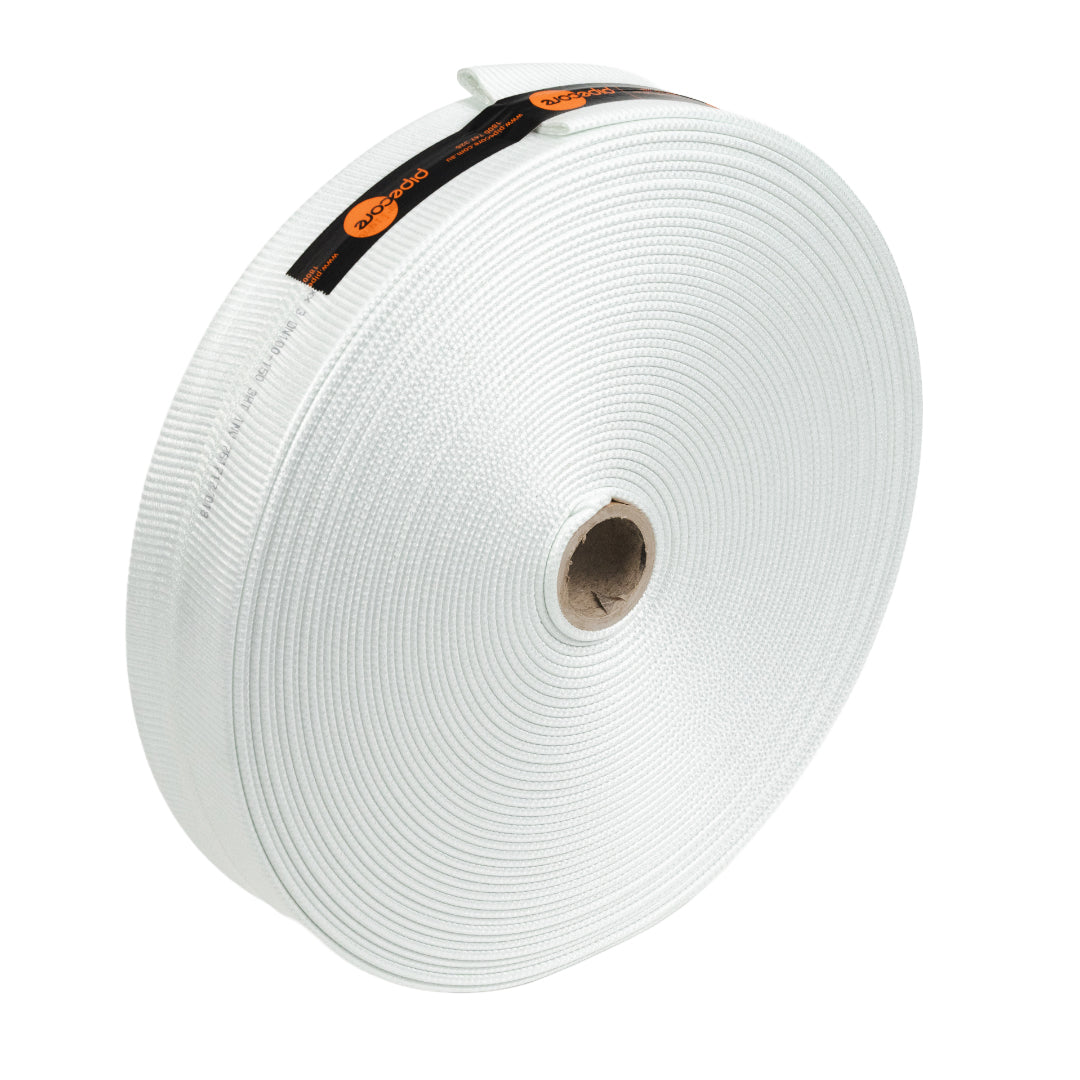

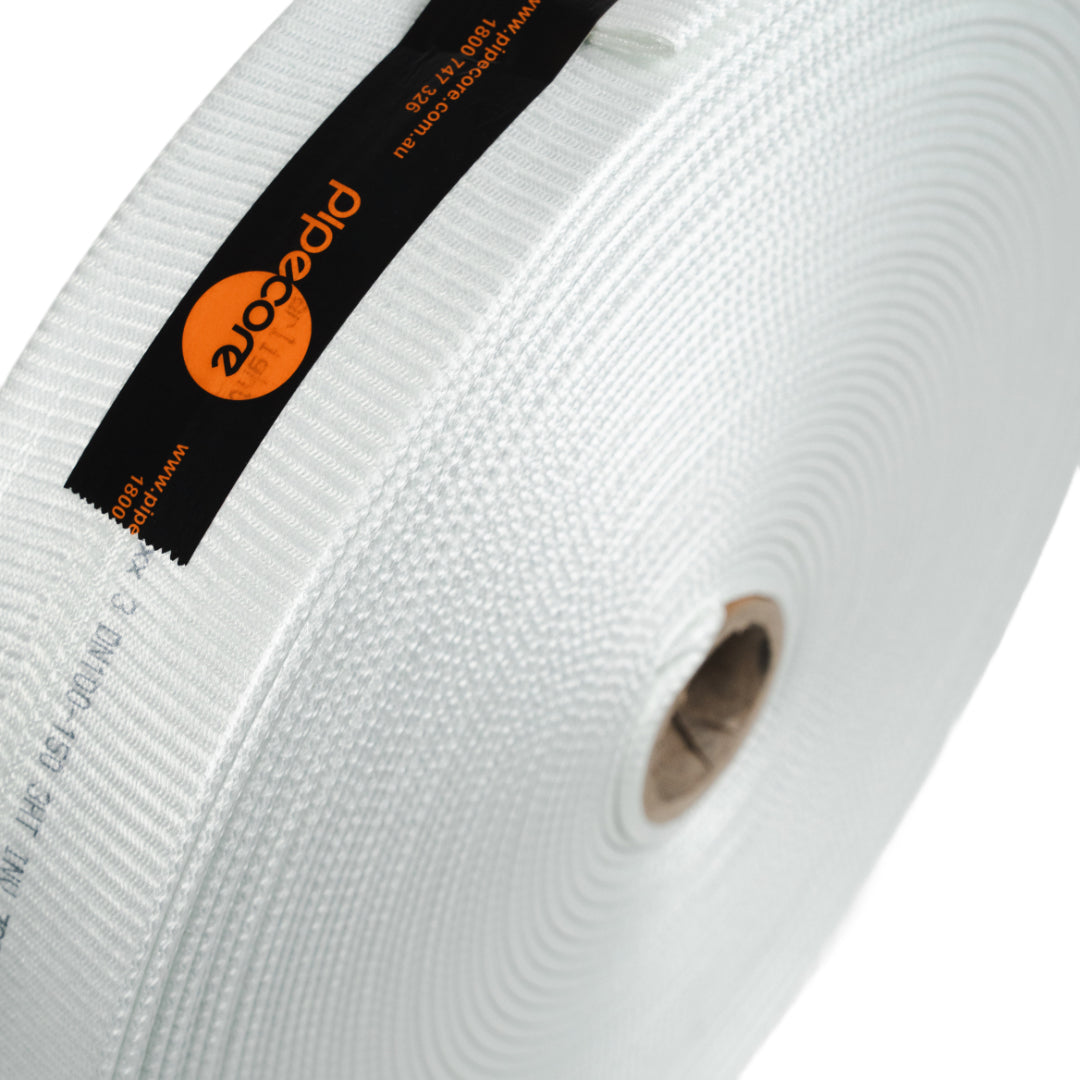

Pipe Core Fibreflex liner is a flexible triple layered knitted E-Glass hose with polyurethane coating, available from DN70 to DN450.
It combines strength and adaptability to meet the demands of a wide range of CIPP rehabilitation projects.
Glass Construction
This inherently stronger structure delivers a more robust product possessing greater strength, higher modulus and lower elongation.
Reduced Resin Usage
FibreFlex can save up to 30% of the resin required for a traditional build, thus, saving cost and time on installations.
Reduced Wall Thickness
The fact that the Glass is stronger allows for the liners to be thinner, reducing installation time, resin usage and impedance within the relined pipe.
Increased Flexibility
The innovative 3D structure allows the product to flex around corners with minimal cramming and adjust in diameter changes.
-
ORDER 100m+
SAVE 10%
Available in stock
With its advanced construction, Pipe Core Fibreflex offers exceptional flexibility and performance, making it suitable for diverse installation conditions. Its robust design ensures reliability, while its versatility makes it a trusted choice for contractors working across both small and large-scale applications.
-
Product FlyerProduct FlyerPDF
-
Technical DataTechnical DataPDF
-
Weightapprox. 2250g/m2
-
Thickness With Coatingapprox. 3.3mm
-
Pore Volumeapprox. 72%
-
FibresE-Glass
-
CoatingPolyurethane TPU / TPU
-
Coating Thicknessapprox. 100μm
-
Seam TypeSeamless
-
CuringAmbient, Hot Water, Steam, UV, UV LED
Consumables
Pipe Core Light Cure Resin
