Pipe Core Junction Liner

SKU: CL10010045

Description

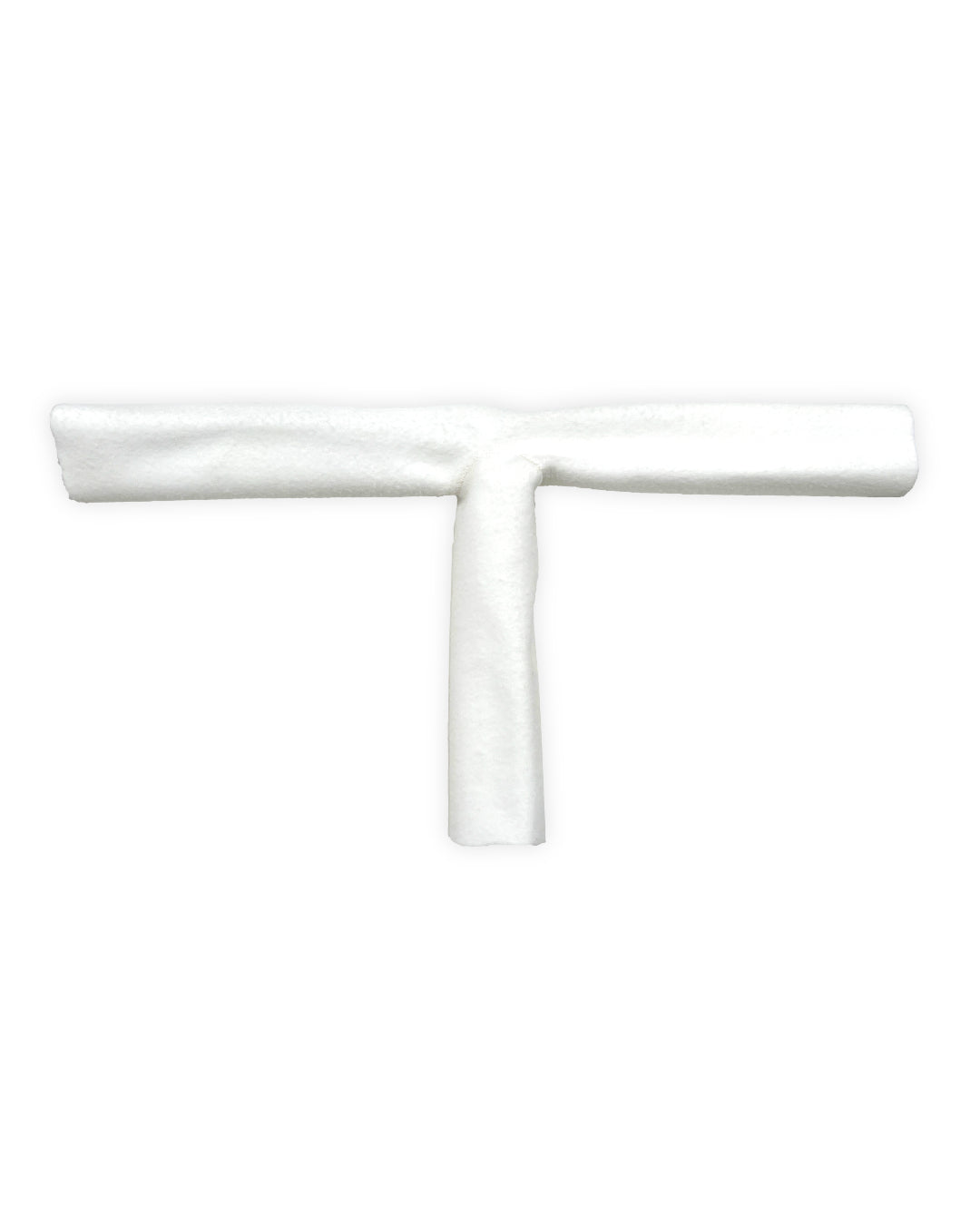

Flexible polyester knitted hose with polyurethane coating, available from DN100 to DN300 in 45° or 90° connections.
Pipe Core Junction Liner is flexible and versatile for the rehabilitation of non-pressure pipelines. Custom sizes are available on consultation with Pipe Core.

$133.27

Available in stock

Main Line: 100mm Main

100mm Main 150mm Main 225mm Main

Lateral: 100mm Lateral

100mm Lateral 150mm Lateral

Angle: 45° Angle

45° Angle 90° Angle

Product is sold per unit

Fast dispatch across Australia and New Zealand

Pipe Core Juction liner is designed and tested in accordance with ISO 11296.4. The parameters of ISO 11296.4 requires the system of a cured liner to be tested to a minimum service life of 50 years.

Product Downloads

Product Flyer

PDF

Product Flyer

Specifications

Weight

approx. 750g/m²
Thickness With Coating

approx. 3.0mm
Pore Volume

approx. 85%
Fibres

polyester
Coating

Polyurethane PU
Coating Thickness

approx. 250μm
Seam Type

Stitched
Curing

Ambient, Hot Water, Steam Mix
Standard Measurements

900mm Main x 400mm Lateral
