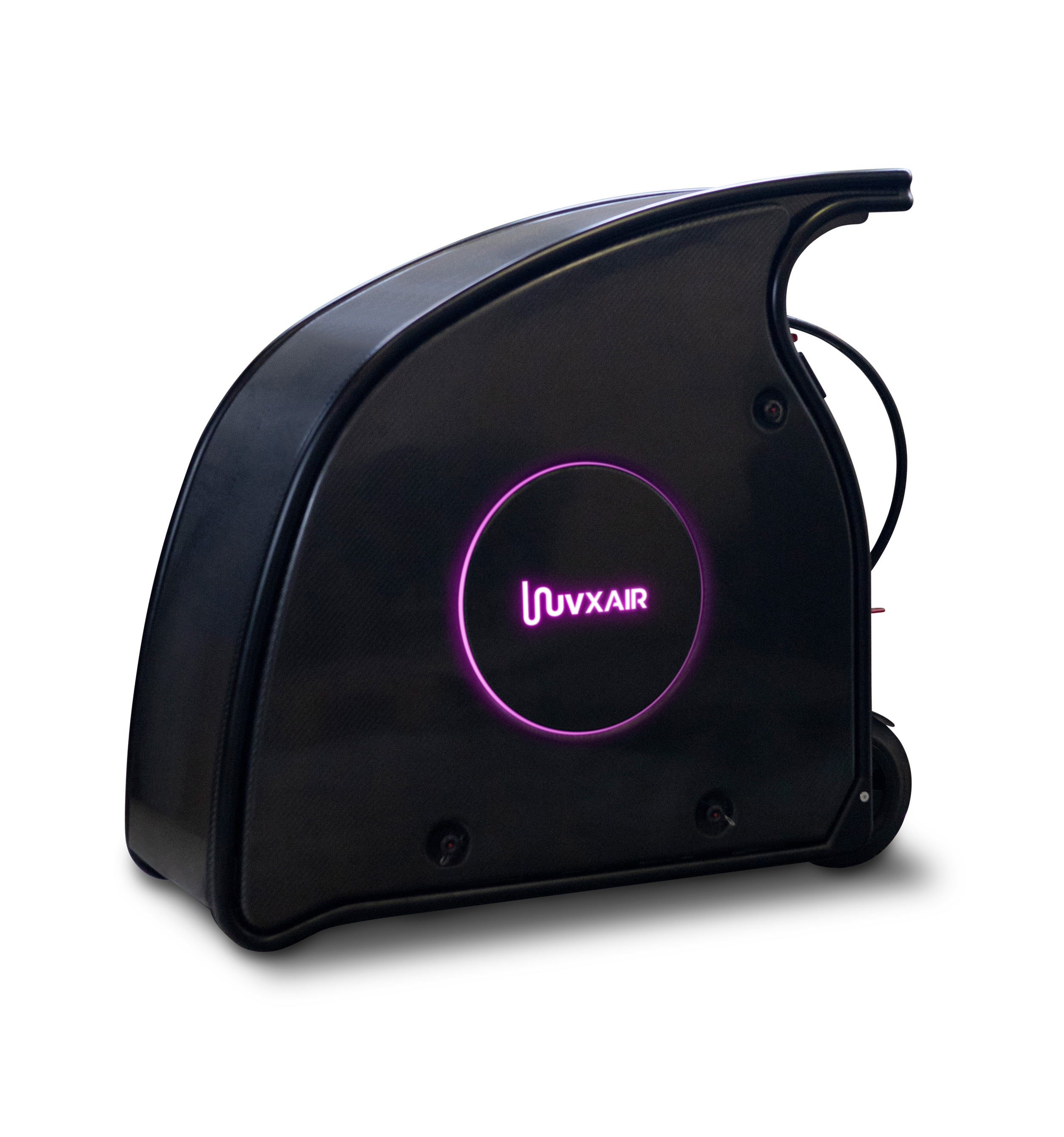

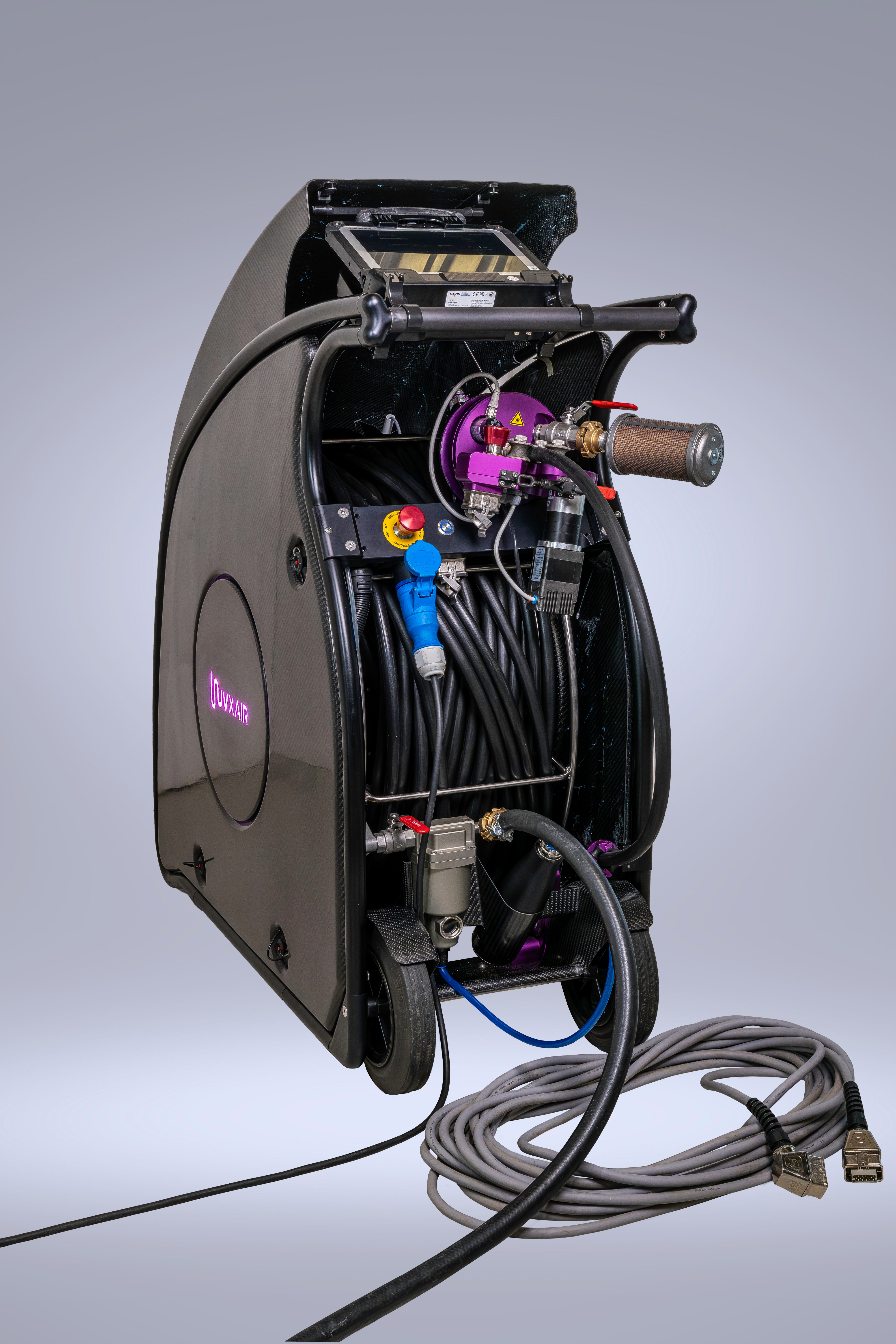

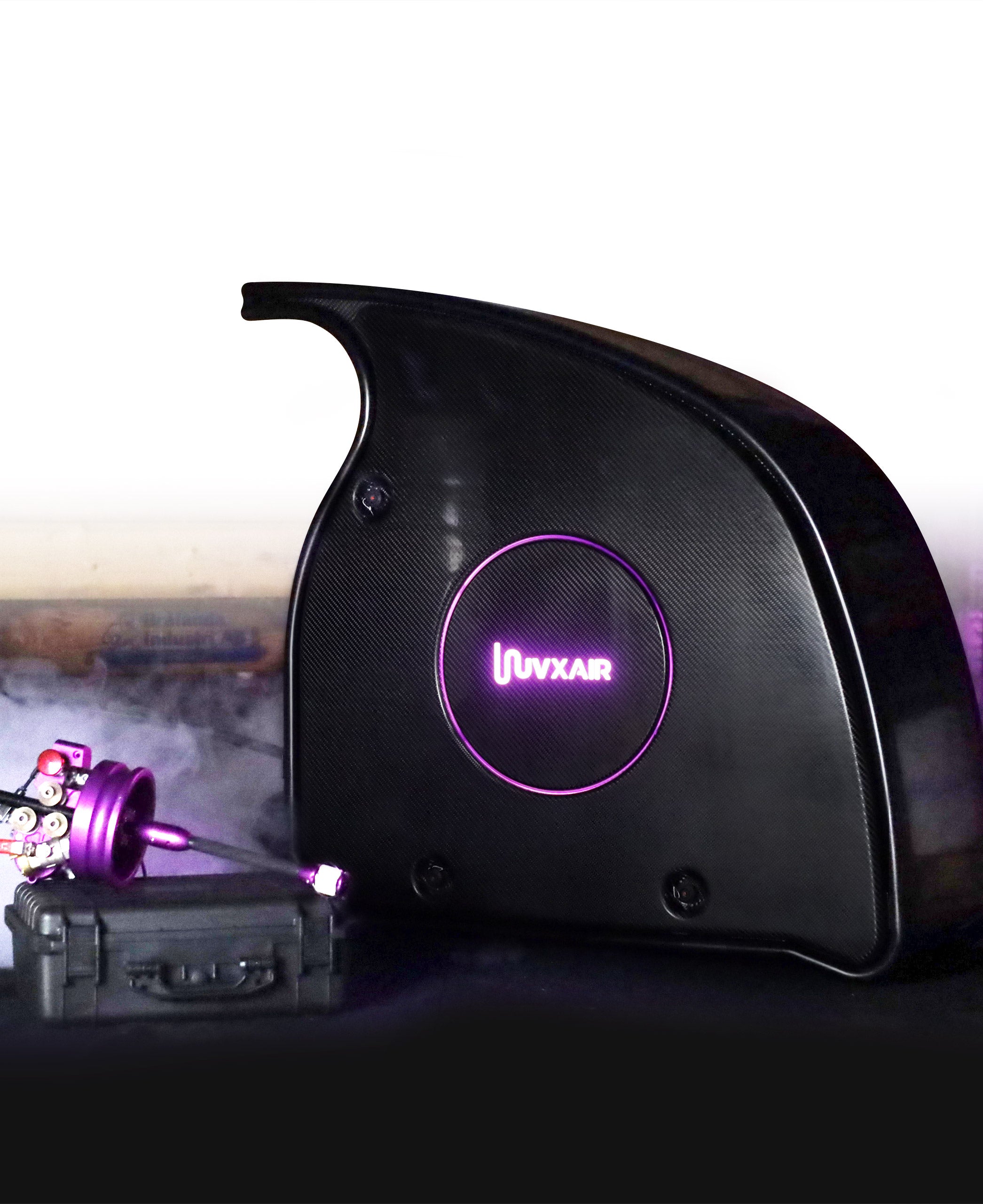

UV Relining UV XAIR
UV Relining UV XAIR
Description
Description
UVXAIR is one of the latest innovations, a system for dimensions from DN70 all the way up to DN 600 with one single head, unmatched by competitors.
Portable control-tablet with cloud synchronization ensures the most efficient workflow for every installer.
System Capability:
• Curing speed in a DN100 is 100 Meters/hour - 1.66 Meters/minute
• Cures Liner from DN70 to DN600 (with one light head)
• Manoeuvres through DN70 90 degree bends
• Easy to repair on the jobsite

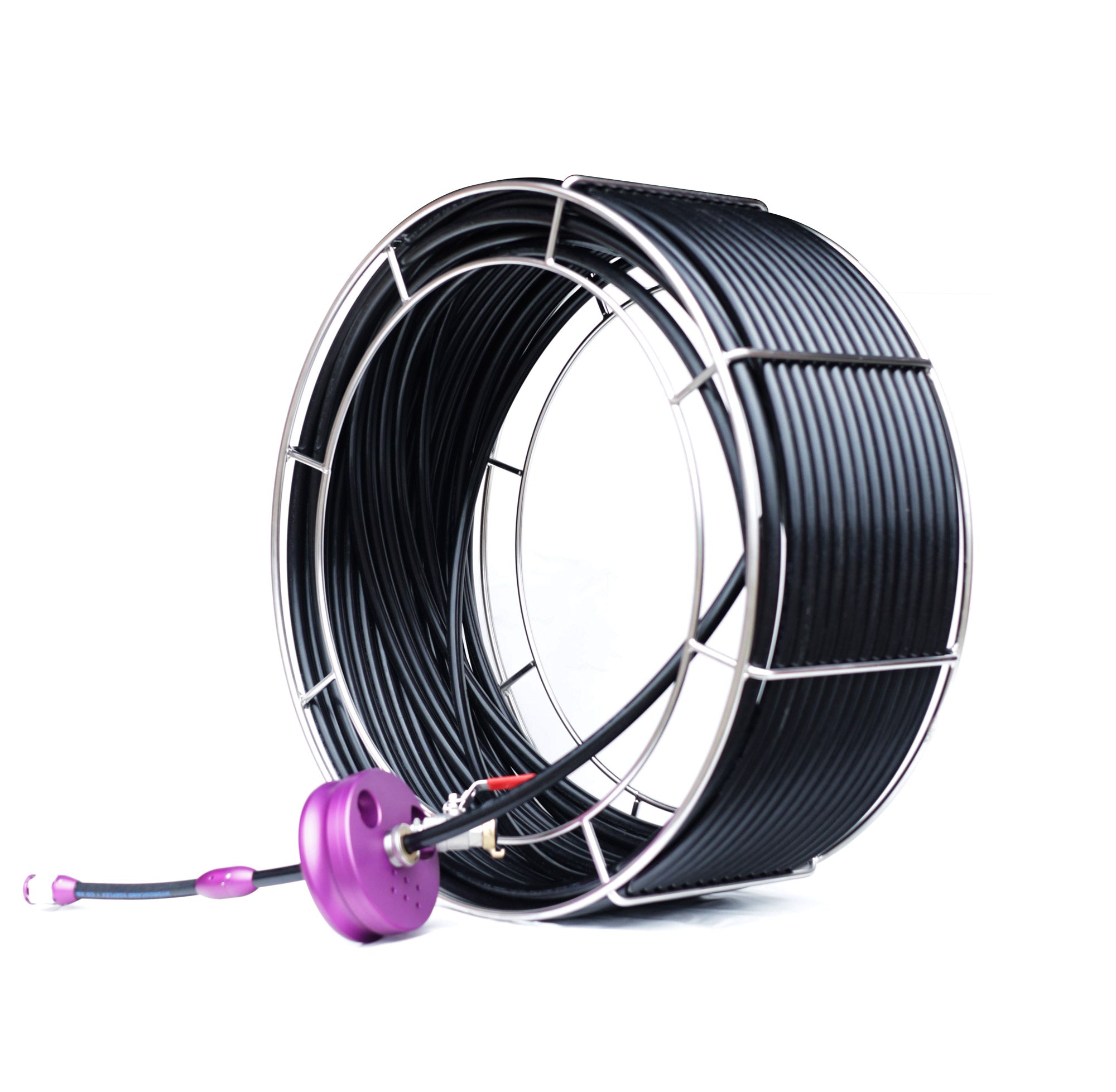

• 70m Push Rod
Technical Information:
• 5 x 110W LED lamps with quartz glass
• 550-750W power (efficiency 45%)
• 220V / 7amp
System Requirements:
• Cooling: minimum 900 litre/minute at 6.5bar
Experience unparalleled convenience with UV XAIR’s simplified service process, streamlining maintenance and minimizing disruptions. What truly sets UV XAIR apart is its versatility—equipped with a single UV-head, it effortlessly cures dimensions ranging from DN70 to DN600, a feat unmatched by any other system on the market.
-
Technical Data SheetTechnical Data SheetPDF
-
Supplier CatalogueSupplier CataloguePDF
-
Pushrod length70m
-
Suitable for installation inDN70 to DN600
Consumables
Bulk UVLCR Light Curing Resin
