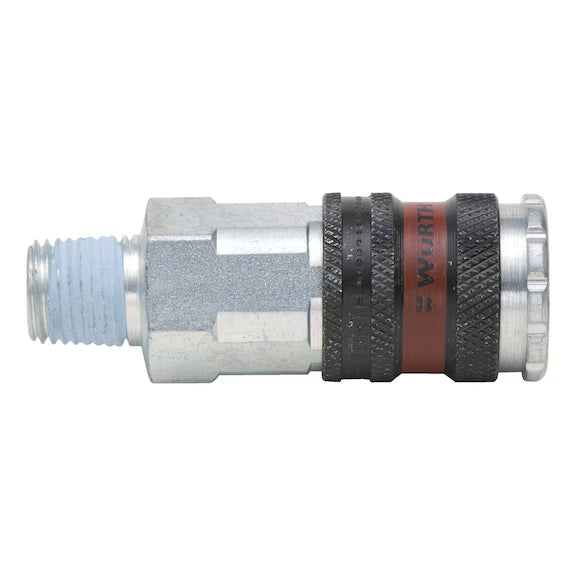

Wurth Male Thread Quick-Action Coupling Series 2000
Wurth Male Thread Quick-Action Coupling Series 2000
Description
Description
High flow rate up to 2,100 l/min at 16 bar, ergonomic one-hand operation, airtight connection for efficiency, hardened sleeves and corrosion protection for long life.
- High flow rate of up to 2,100 l/min and maximum operating pressure of 16 bar - Enables optimum compressed air supply and output utilisation of compressed air consumers. Results in greater productivity and lower energy costs.
- Ergonomically designed locking sleeve - The locking sleeve ensures a secure grip and prevents the component from slipping off.
- Low coupling force enables one-handed operation - Only minimal force is required for simple, fast and safe coupling and decoupling.
- Airtight connections - Low power consumption and high efficiency
- Hardened locking sleeves - For max. load capacity and long service life.
- Exposed surfaces are chrome plated, nickel plated or zinc plated - High corrosion resistance for protection even under demanding conditions.
- Series 2000 fittings comply with the European standard and have a nominal width of 7.6 mm
Regular price
$75.18
Sale price
$75.18
Regular price
Low stock
Product is sold per unit
Specifications
-
Connection threadET R 1/4 inch
-
Length (L)63mm
-
Outer diameter (D)23mm
-
Width across flats (SW)20mm
-
Flow capacity2.1 l/min
-
Min./max. temperature resistance-20 to 100 °C
